Jaw Crusher

Capacity:1-1120 tph

Feeding Size:<1200mm

Discharge Size:10-360mm

Process Material:Granite, dolomite, river pebbles, quartz, calcite, etc.

Jaw Crusher Overview

A jaw crusher is a compression type crusher, usually used as a primary crusher set at the very front of the ore or rock crushing plant to reduce hard rock size. Jaw rock crushers are commonly double-toggle jaw crushers, composed of a fixed jaw and moving jaw, the discharging stone particle size can be controlled by changing the discharge port. Owing to their high crushing capacity and hard material efficiency, jaw crushers are a good alternative to primary gyratory crushers.

Jaw Crusher Types

1.Single toggle jaw crushers and double toggle jaw crushers.

2.Industrial jaw crushers and laboratory small jaw crushers.

3.Diesel engine jaw crushers & Electric jaw crushers.

4.Hydraulic jaw crushers

5.Stationary & mobile jaw crusher(track mounted jaw crusher).

6.PEX / PE jaw crusher.

Advantages

Jaw Crusher Advantages

·Advanced swing jaw assembly, more durable.

·Large reduction ratio, optimum design of chamber, and high crushing efficiency.

·New cambered jaw increases the effective length of the jaw plate and brings a larger capacity for the jaw crusher.

·High wear resistance of parts.

·Flexible and versatile, with a wide range of applications.

·Advanced crushing process, energy saving, and high efficiency.

·The structure is simple and easy to operate, and the maintenance is convenient and fast.

·Reasonable price.

Structures & Working Principle

Jaw Crusher Structure
The main parts of a jaw crusher are the flywheel, pitman, hydraulic cylinder, toggle plate, eccentric shaft, fixed jaw, moving jaw, and so on.

Jaw Crusher Working Principle
Motor drive belt and pulley, the eccentric shaft pushes the movable jaw against the fixed jaw, generates the crushing action, and compresses the material to the desired size. The crushed materials are discharged from the discharge port, and the bottom gap of the crusher controls the discharge particle size.

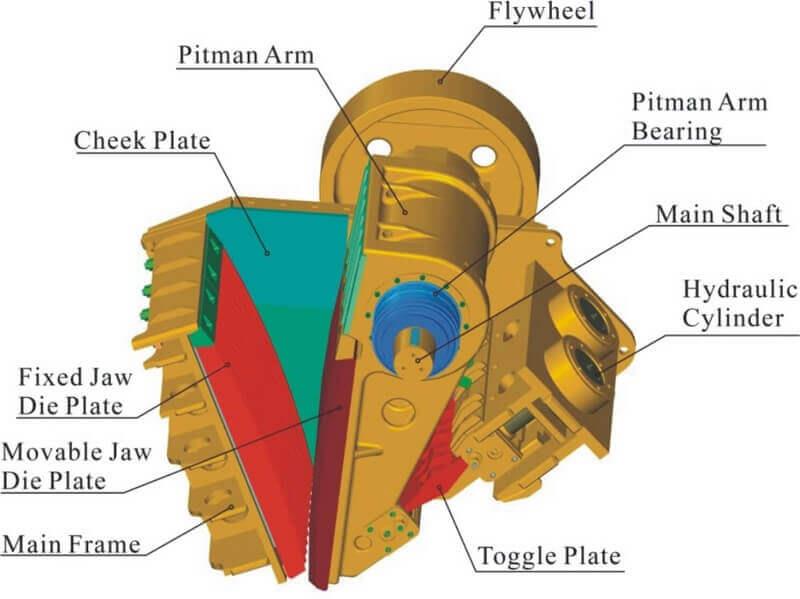

jaw crusher structure
