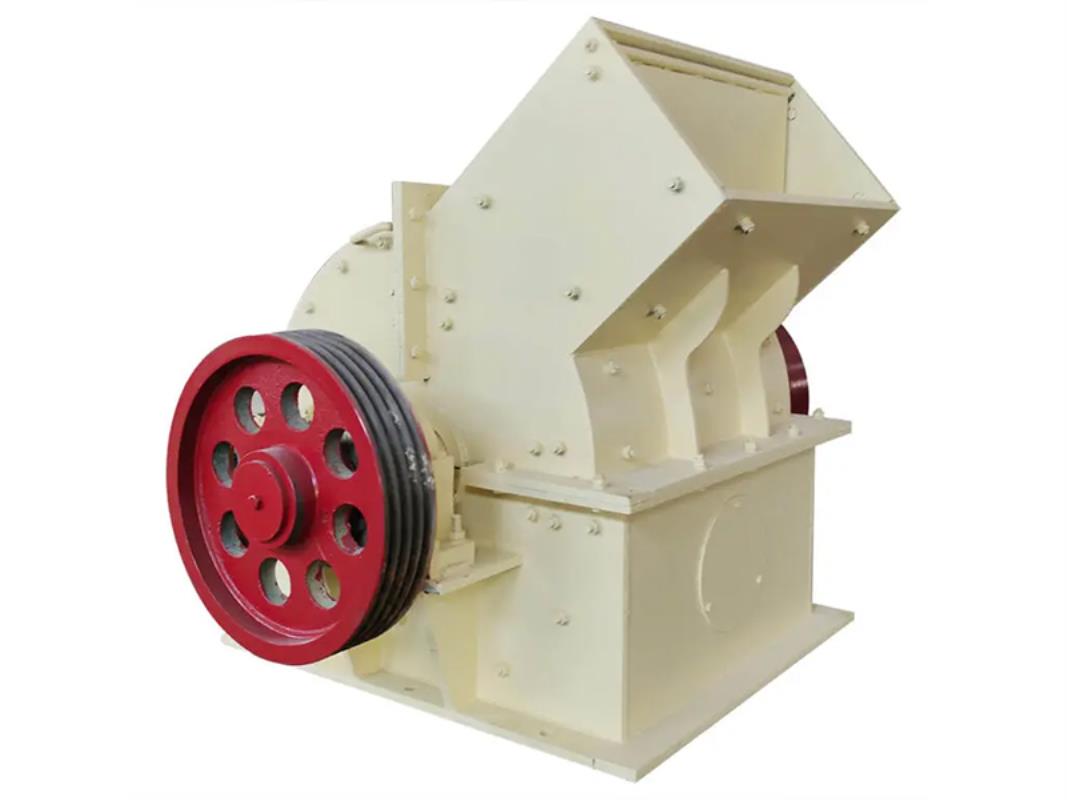

Hammer Crusher

Capacity:1-110 tph

Feeding Size:≤ 350mm

Discharge Size:0-35mm

Process Material:Cement, coal, white subdivision, gypsum, alum, brick, tile, limestone, and other soft-medium hardness materials.

Hammer Crusher Overview

Ahammer millis a rock crusher used in various industries to reduce the material size, such as limestone, coal, slags, gypsum, glass. It uses of high-speed rotary hammer to impact the ore, the finished product size is adjustable by controlling the grate openings, rotor speed, hammer capacity, etc. Hammer mill, samehammer crusher, hammer breaker, can crush the 600-1800mm materials to below 25 or 25 mm. Sometimes, the hammer mill crusher is named by the application fields, such as coal crusher, coke crusher, limestone hammer crusher, brick crusher, cement hammer crusher, etc.

Hammer Crusher Types

1.Single rotor and double rotary hammer crusher

2.Directional and reversible hammer crusher

3.Vertical shaft, ring hammer crusher, swing hammer crusher

4.Fixed and mobile hammer crusher

Advantages

Hammer Crusher Advantages

·Easy adjustment of product size

·high grinding capability

·Easy maintenance, a quick exchange of worn parts

·Stable operation

Material of the hammers:Chromium alloy (containing 20% - 27% chromium)

The capacity and base material varies hammer crushers' price. JXSC tailor-made the best configuration for different working requirements, longer service time, and less maintenance. Contact us to get the best stone hammer crusher machine price.

Structures & Working Principle

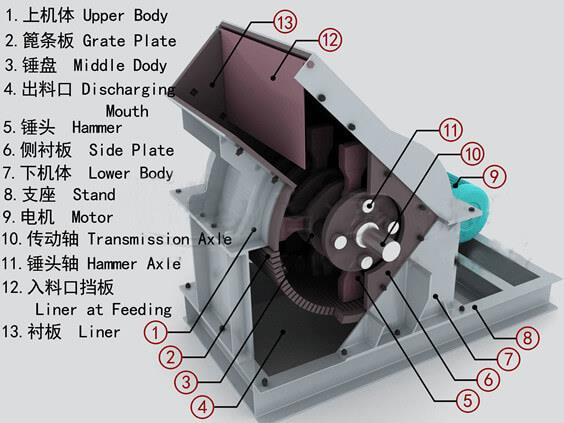

Hammer Crusher Structure
The main parts of a hammer crusher are the crushing chamber, rotor shaft, frame, impact hammer, grate bars, motor, flywheel, grate, pallets and lining, dust seal, and overload protection device.

Hammer Crusher Working Principle
Material is fed into the hammer crusher, which is subject to rotation, high-speed impact, and collision. Qualified crushed ore is discharged through the grate, the larger size materials continue to be crushed and shattered until they reach the required size.

hammer crusher structure
