Congo 40 TPH Tantalum-Niobium Process Plant
JXSC has provided a successful 40 TPH tantalum-niobium process plant in Congo. We design the separation process plant flowchart and plant layout drawing according to the mineral ore's conditions and offer a complete set of plant machines.

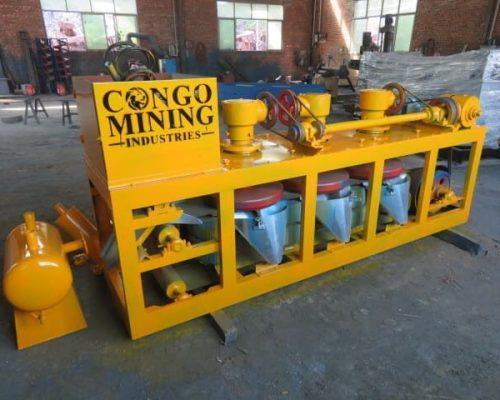

Tantalum-Niobium Process Plant Project Case
Introduction
Minerals: Alluvial and rock mixture type tantalum-niobium ore with sticky clay
Feeding Size:<120mm
Capacity:40 TPH
Process:Feeding -> Washing & Screening -> Gravity Separation -> Crushing & Grinding -> Magnetic Separation
Solutions & Process

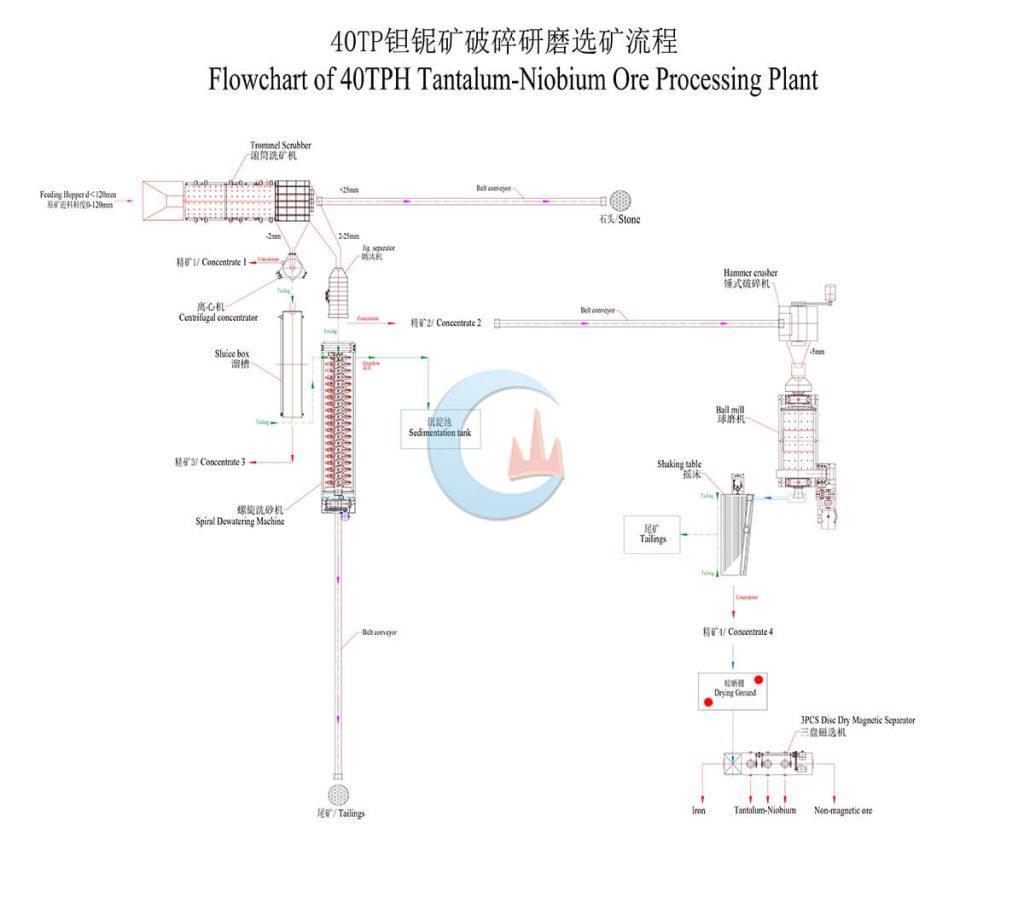

Tantalum-Niobium Ore Processing Plant Flowchart
This setup is a 40 tons per hour alluvial and rock mixture Tantalum-Niobium Ore processing plant.It is configured with a rotary scrubber, jig concentrators, centrifugal concentrators, shaker tables, sluice box, belt conveyors, ball mill, hammer crusher, spiral sand washer, etc. The process is as below:
·The plant will begin fromrotary scrubberwith a hopper. The hopper also can be made with a grizzly bear to screen the much bigger rocks. Since there's a lot of sticky in the raw ore, we suggest using a trommel scrubber to wash away the sticky clay. If you are raw or without too much sticky clay. You can use a Trommel screen. Here, the scrubber has 2 layers of screen, 2 mm, and 25mm. Therefore, rocks more than 25mm will be transferred together. Then the less than 2mm materials will go to acentrifugal concentrator. The tailing from the concentrator will go tosluice boxto gather concentrate again.
·The 2-25mm materials will go to the jig separator.jig concentratormesh size will be 2mm. Then the 0-2mm sizes below the mesh from the jig concentrator and tailing from the sluice box will be sent to aspiral sand washerfor dewatering. After that, the materials will be sent away by a conveyor belt. The 2-25mm materials above the mesh will be sent to ahammer crusherby belt conveyor to crush to be less than 5mm. The less than 5mm materials will go toball millto grind to be 0-1 mm. After that, you need to feed the 0-1mm materials into ashaker tableto separate and collect the concentrated ore.
There are too many magnetic ores(like magnetite, hematite, etc) inside the concentrate ores, we can dry your concentrate first then use three disc dry magnetic separatorto remove them and get the final concentrate Tantalum-Niobium ores.
