Angola 100TPH Diamond Processing Plant

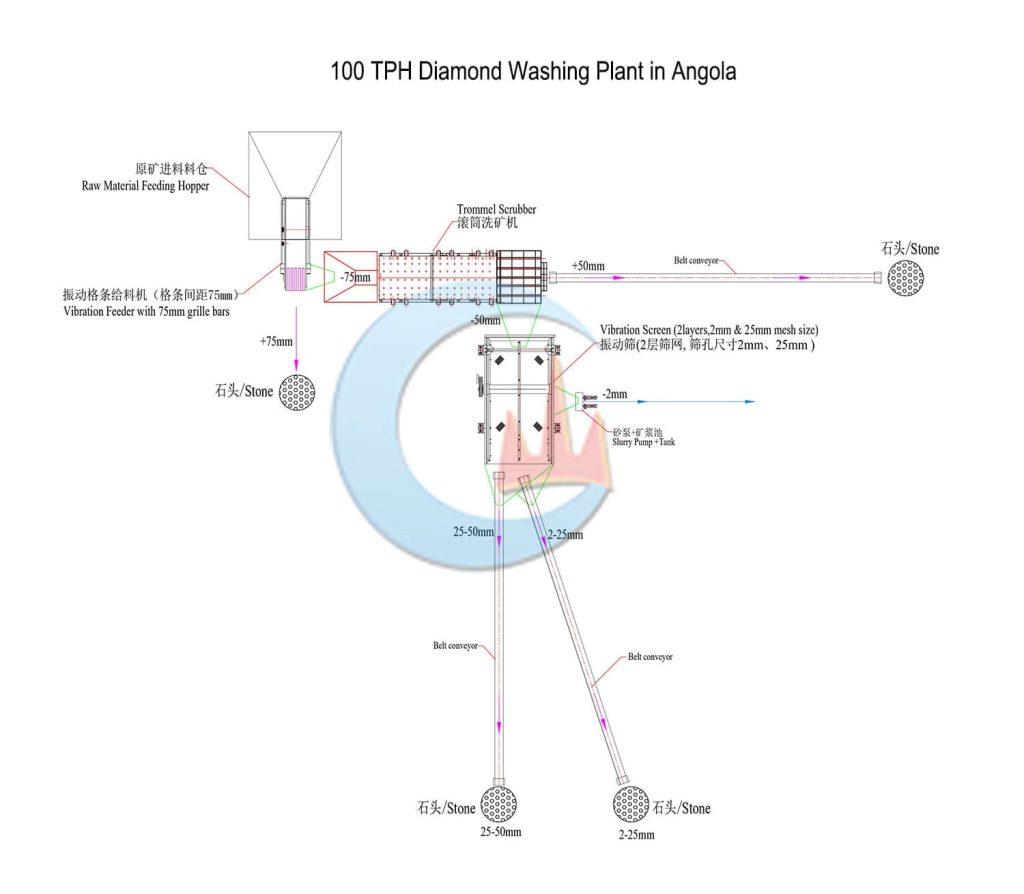

JXSC has provided a successful 100TPH diamond processing plant in Angola. We design the ore process plant flowchart & plant layout drawing according to ore conditions and offer a complete set of plant machines.

Diamond Processing Plant Project Case

Introduction

Minerals: Diamond
Capacity:100 TPH
Diamond Size:<50mm
Process:Feeding -> Washing -> Screening

Solutions & Process

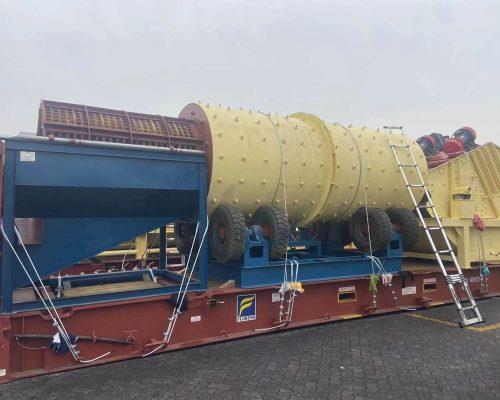

Diamond Processing Plant

This setup is a rock gold process plant.

·The plant is configured with a hopper connected tovibrating feederunder the hopper.

·The vibrating feeder is with 75mm grille bars. The above 75mm is stone to deliver to the waster. The below 75mm is sent totrommel scrubber machine.

·The Trommel scrubber washes the material and screens out the 50mm stone, the material below 50mm goes tovibrating screen.

·The vibrating screen is 2 layers with the 2mm and 25mm mesh size. It can screen out25-50mm, 2-25mm, and -2mmmaterial.
